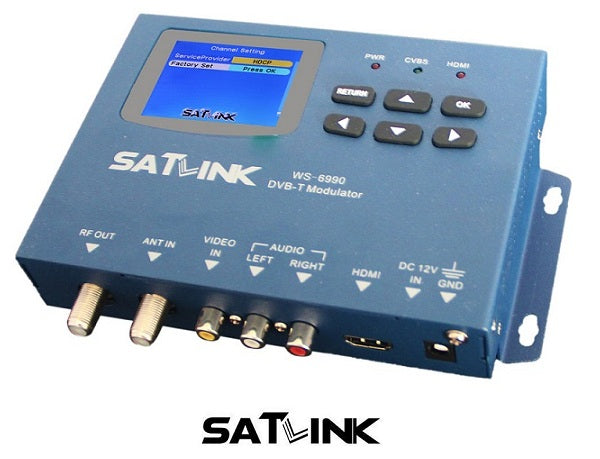

SATLINK WS-6990 RF HD Modulator DVB-T/AV/HDMI

SATLINK WS-6990 RF HD Modulator DVB-T/AV/HDMI

Χαρακτηριστικά:

• High level of integration, high-performance, Full-featured, integrated design
• Single input modulator that converts analogue A/V source to a DVB-T channel
• Standard COFDM modulation and H.264 encoding
• Multiple video format compatibility including 576i(PAL) / 480i(NTSC) / 1080p
• Support High-Bandwidth Digital Content Protection /HDCP
• Bandwidth: 6/7/8MHz
• Frequency range: 50~860MHz
• Continuously adjustable RF signal output level range 70dBuV from 100dBuV, step 1dBuV
• 2.4-inch color LCD display
• Small size and light weight
• Carriers 2K and 8K
• User friendly setup and control
• Compact and wall mountable

Τεχνικά Χαρακτηριστικά:

• Modulator
  • Standard: DVB-T
  • Constellation: QPSK / 16QAM / 64QAM
  • Bandwidth: 6 / 7 / 8 MHz
  • Carriers: 2K / 8K
  • Guard Interval: 1/4, 1/8, 1/16, 1/32
  • Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8
  • MER: 35 dB
  • Frequency Range: 50 ~ 860 MHz
  • Output Leve:l 70 ~ 100 dBuV
  • Output Impedance: 75Ω
• Video
  • Input Format: CVBS/HDMI
  • Encoding Format: H.264
  • Video Resolution: 576i PAL / 480i NTSC/1080p
  • Connector: RCA/HDMI 1.3
• Audio
  • Input Format: Stereo L/R channel
  • Encoding Format: MPEG-1 Audio Layer II
  • Connecto: RCA
• General
  • Power Source: DC 12V / 1.5A
  • Operating Temperature: 0 ~ +50°C
  • Dimensions: 155mm(L) × 114mm(W) × 33mm(H)
  • Weight: 0.5Kg
